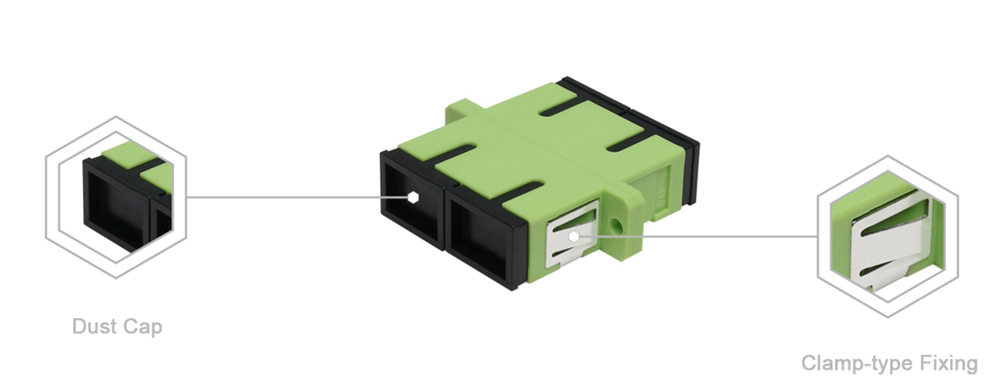

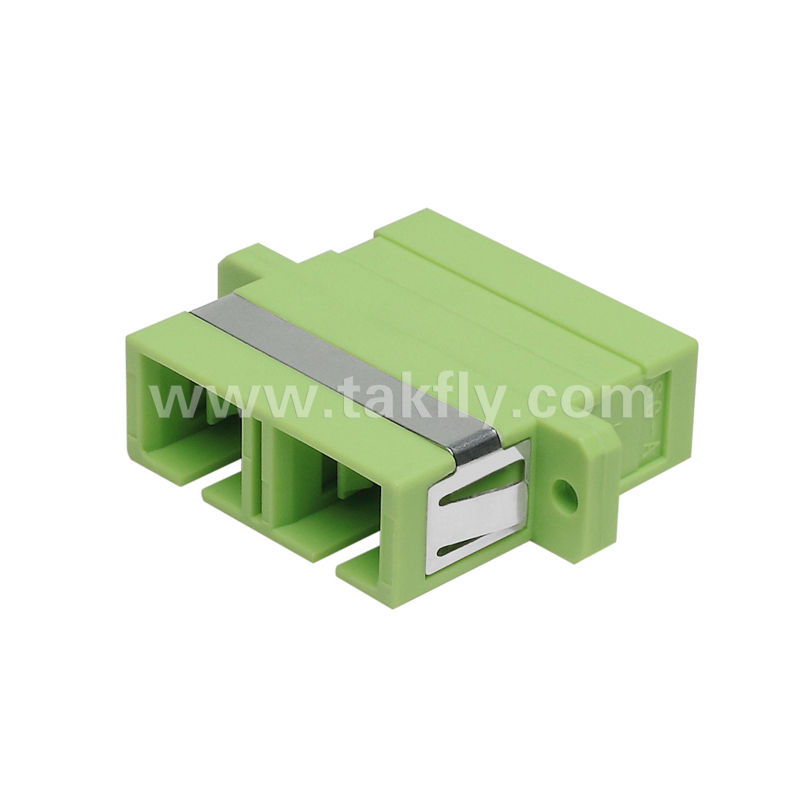

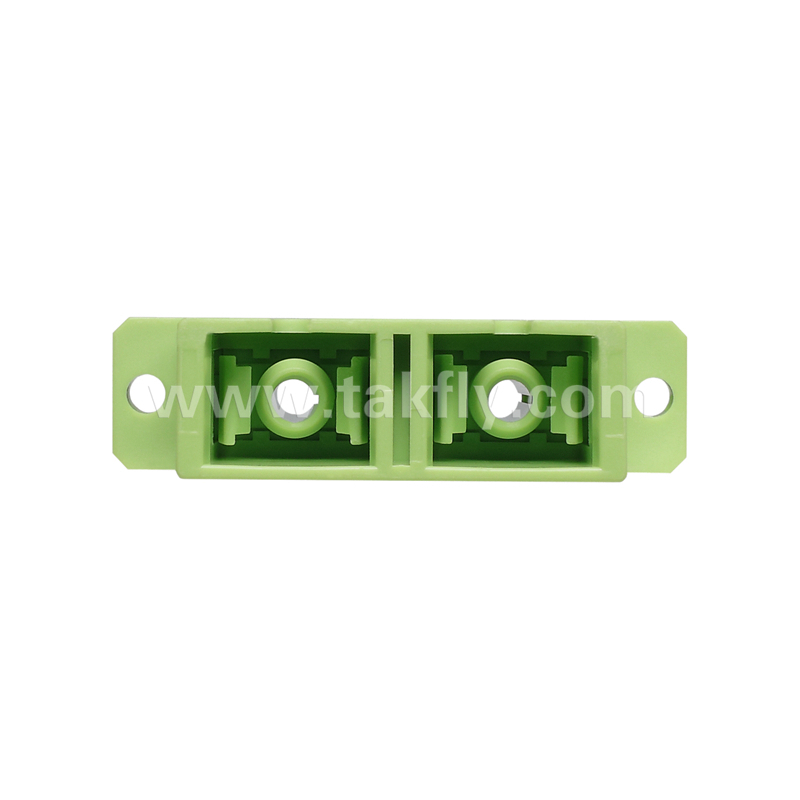

SC square，Easy installation
The SC adapter is a standard square structure, which is easy and quck to install.

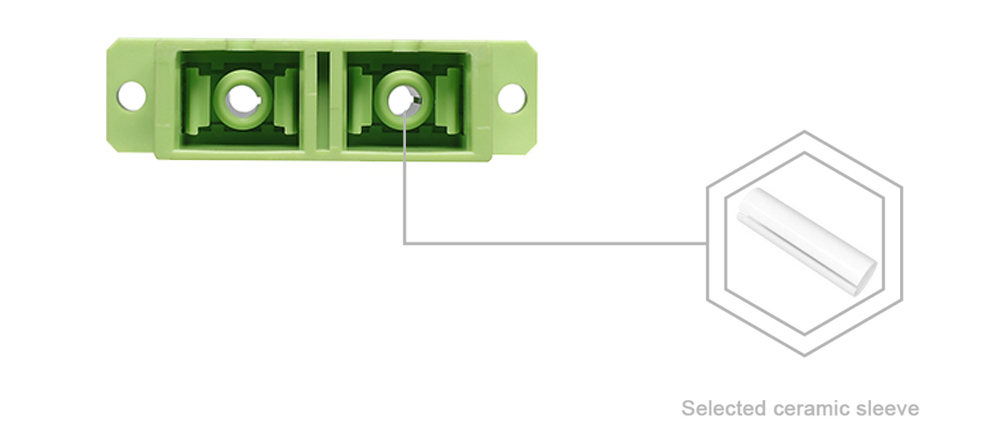

Selected ceramic sleeve
High-precision ceramic sleeves are selected to achieve high-precision alignment of the connectors to ensure long-term stable mechanical and optical performance.

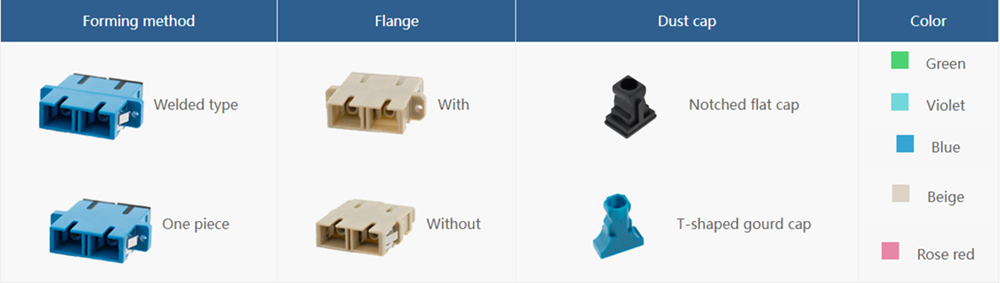

Multiple styles available
SC duplex adapter are available in a variety of options.
Application&Parameter
SC duplex adapter has the advantages of convenient installation, low insertion loss, good
interchangeability, high temperature resistance, etc. It is one of the indispensable connecting devices
in optical networks, and is widely used in telecommunications networks, CATV, FTTX and other fields.
Parameter
|
Product |
SC Duplex Adapter |
|
|
Mode |
SM |
MM |
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
|
Mating Durability(500 timer) |
Additional Loss≤0.1dB |
|
|
Temperature Stability(-40℃～85℃) |
Additional Loss≤0.2dB |
|
|
Operating Temperature |
-20℃～+75℃ |
|
|
Storage Temperature |
-40℃～+85℃ |
|
